Diagonal Bay Braces

product image
left arrow right arrow
Downloads

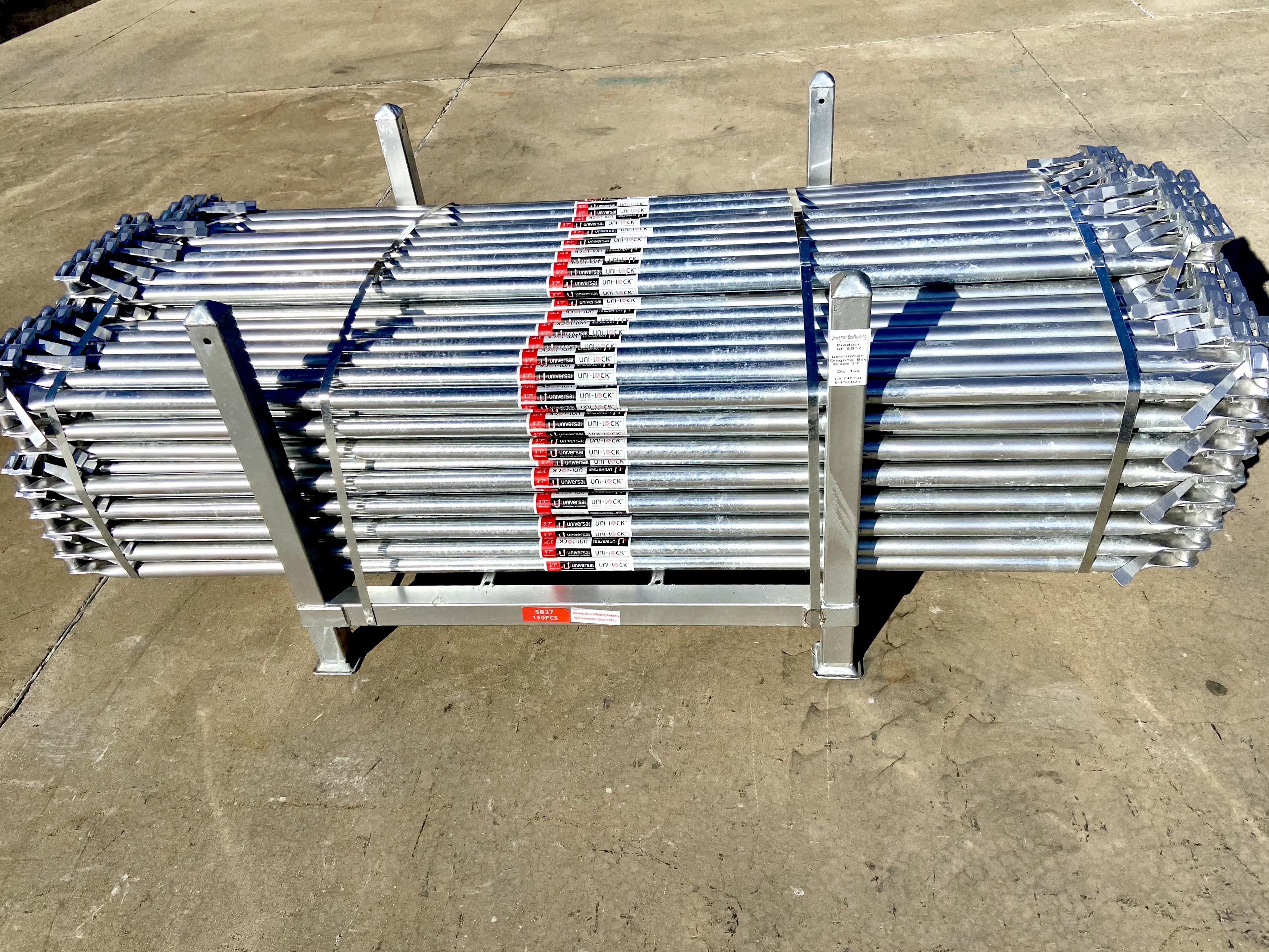

Uni-Lock Ringlock Diagonals

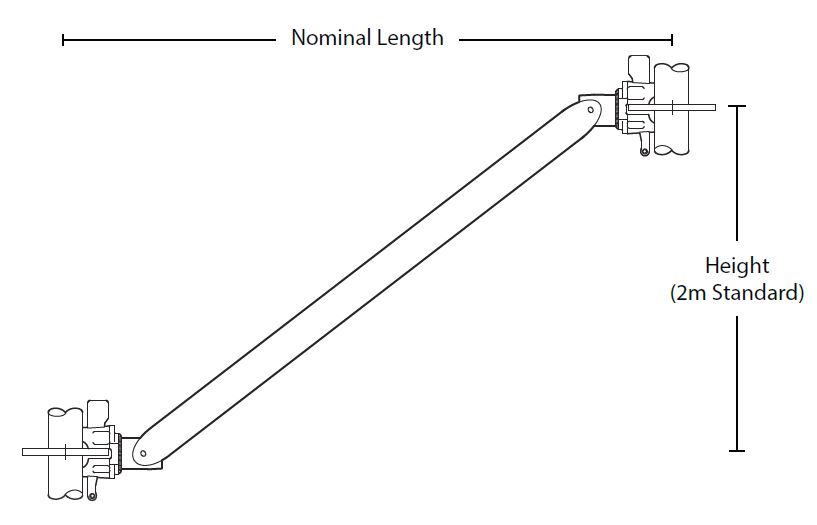

The Uni-Lock Ringlock Diagonals are used in a reinforcement and stabilizing role. With two rotating wedges located on either end of the bay brace, the wedge inserts into the diagonal node on the rosette. When building out a set of bays with scaffolding, only a max of 3 bays without diagonals (horizontals only) can be erected. The 4th bay in the series would require a diagonal in order to keep the scaffold shored up correctly.


Heavy Load Capacity
All Uni-Lock Ringlock system scaffolding components have been designed and tested in accordance with OSHA, ANSI, and CSA guidelines. All maximum recommended loads are based on a safety factor at ultimate strength of 4:1. Contact us for a copy of the Uni-Lock Engineering manual with technical specifications on the tubing and loading capacities of the Uni-Lock Scaffolding System.
