Tubular Cross Braces
Tubular Cross Braces

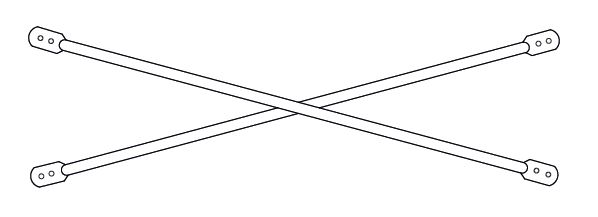

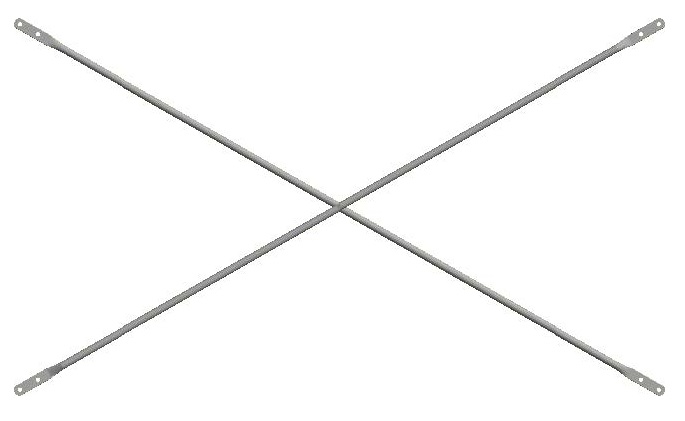

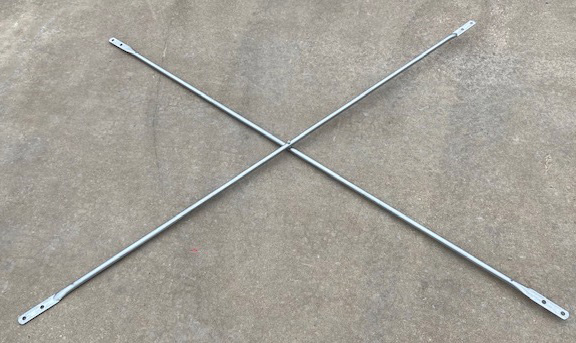

Universal Frame Tubular Crossbraces are galvanized and come in dual-hole and single-hole configurations. Universal crossbraces are compatible and fit any Safway, Waco, or Bil-Jax-style frames or other manufacturer in the market. The sizing is listed as when fully opened so 7'x4' is a fully open 7' long bay x 4' wide pin hole spacing.
Hot-Dip Galvanized Frames
Universal's use of hot-dip galvanized frames increases the life span of a typical scaffold frame significantly and prevents the rust from breaking down a frame and creating a junk yard of inventory. This attention to higher quality material and galvanization sets Universal's frame scaffold apart from the rest.
| Product Number | Lbs | Description |
|---|---|---|
| UF-CB434 | 9.1 | 4' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB534 | 10.2 | 5' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB634 | 11.7 | 6' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB734 | 12.5 | 7' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB834 | 14 | 8' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB1034 | 16.1 | 10' x 3' x 4' Tubular Dual Hole Cross Brace |
| UF-CB72 | 8.8 | 7' x 2' Tubular Single Hole Cross Brace |
| UF-CB73 | 10.6 | 7' x 3' Tubular Single Hole Cross Brace |
| UF-CB74 | 11.2 | 7' x 4' Tubular Single Hole Cross Brace |
| UF-CB102 | 14.6 | 10' x 2' Tubular Single Hole Cross Brace |
| UF-CB103 | 15.1 | 10' x 3' Tubular Single Hole Cross Brace |
| UF-CB104 | 15.5 | 10' x 4' Tubular Single Hole Cross Brace |
